We're assembling a bulk freight shipment, and you can save hundreds on shipping! Order your boat or camper kit by February 19th and take advantage of these special shipping rates:
$95 for Boat Kits*
$195 for Teardrop Camper kits
Your kit will be available for pickup at the Northwest Maritime Center in beautiful Port Townsend between March 10 to 15 (you must pick up between these dates).
The Lugubrious Fine Print: This offer does NOT apply to LARGE individual kits that regularly ship on their own pallet: PocketShip, Rhode Runner, Peeler Skiff, SW Dory, etc.
BONUS:
Order a boat (or camper) kit for delivery to Port Townsend and we'll throw in our newest accessory, a cool (and practical) Portable Epoxy Station Kit, FOR FREE -- a $98 value!
Checking in from our cross-country road trip. We stopped by a lake in Colorado a couple of days ago to take the PT11 out for a sail and noticed something very alarming... The back seat buoyancy tanks have bowed - like the air in the tanks expanded. They have returned to the normal shape again, but the fiberglass strips on the tank joints probably couldn't handle the pressure and have cracked - see pictures attached.
This boat was built at sea level in NYC and the tanks were expanded at roughly 10,000ft. The good news is that they did not explode nor do they appear structurally compromised, thanks to wood/epoxy as a construction method.
Most of our clients have used their boats near where they built them but others have taken their boats from sea level proximity to higher altitude lakes. (These two videos are thanks to Randy and Kim Kerr)
Randy replied to my inquiry about his lake trips: "We've never really taken our PT11 higher than 4000' and didn't notice any bulging in the buoyancy tanks personally. I could imaging customers that span 10K feet in altitude difference could easily see bulging or compressing."
basic air pressure illustration
Because Russell and I initially imagined our boat builders using their PT 11 dinghies primarily for ocean cruising, the influence of high altitude on the air buoyancy tanks simply did not come up but once in 15 years. That customer installed a relief valve but we never heard exactly what type or how well it worked. We imagined that as a one-off but we are also under the constraints of the USCG rules that prohibit access ports or any compromise of a sealed air tank if it is to be counted as buoyancy. Hence we moved on.
Times are changing however, and it appears that more PT 11s are on road trips and out lake sailing so, it seems prudent to address the air pressure question for anyone planning altitude differentials of more than 4-5000ft with their PT 11 or SPEAR dinghies.
There is an argument for drilling a 1/4" hole on the vertical face of each of the three air buoyancy tanks and filling them with thickened epoxy. (This keeps moisture from reaching raw wood.) If you then notice any expansion at altitude, you have a safe spot to drill a very tiny hole to relieve pressure. The hole could then be taped over until the boat was back at its normal altitude when the new hole could be filled. You would have to choose a time and place with a stable temperature to fill these holes. In an emergency, go ahead and drill tiny holes to keep damage from occurring. Just know that refilling those holes in a way that keeps the wood dry will be important.
One builder currently working on his PT 11 is planning to use it almost exclusively on mountain lakes and had already researched the pressure valve question before I reached out to ask about it. Have you heard of Gortex Dots? He has generously shared his in depth research and conclusions in this PDF article. An Idea for the Vented Volume Dilemma
The standard rule should still be noted for air buoyancy tanks: no access ports or compromise of the seal unless you plan to fill the voids with flotation foam. These dedicated air tanks (forward of the mast step and the aft seat boxes) are not intended as storage and using them as such could present a serious safety risk if you flood the boat. If you truly need to modify the design to fit your intended use, how you manage that is your responsibility, so be informed, do your own research, and think 'safety first'.
As previously mentioned, 2020-21 was largely spent reviewing our production process. Another redesign included the PT 11 foils kit. We took our ideas to Paul Bieker of Bieker Boats for his expertise with foil design. The new foils are thinner, using 18mm Birch plywood instead of 24mm Okoume. The Birch plywood is more dense, chosen for its strength at this thickness and not for it's looks. The machined birch plywood is not as handsome for clear coating as the Okoume but we are quite pleased with the overall change.
Modifying the foils kits affected many other parts of the kit, so those changes are are reflected in a total rewrite of the foils manual and changes in the boat itself (the daggerboard trunk is narrower, etc).
Machining the daggerboard and rudder from high-grade plywood is a good way to produce very efficient and relatively light foils. The process is far from easy though. It has taken much trial and error and a very good CNC programmer (Turn Point Design) to come up with the final product. The price of this foils kit reflects quite a lot of machine time for each set.
Left, the Okoume daggerboard blank. Right, the Birch Daggerboard blankRudder blanks using Okoume on the left and Birch on the right.Fore-shortened image showing the NACA foil shape with lines of tape.PT 11 foils 2022. Painted foils look good!The new daggerboard hold down uses the existing trunk cap turn-dog and a composite "pin" that is bonded into the dagerboard.The complete 2022 PT 11 foils kit as sold by Chesapeake Light Craft.

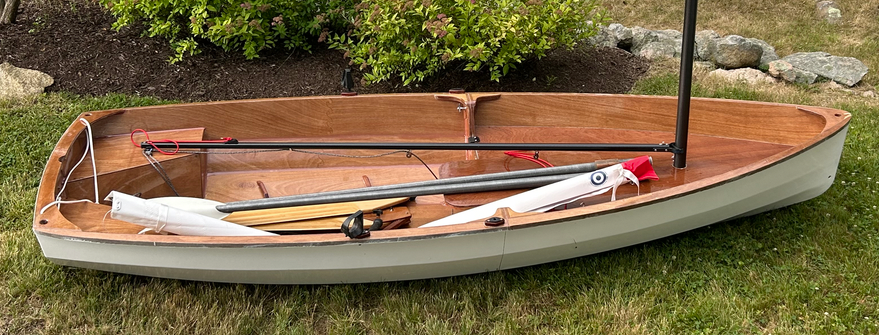

PNW local, is currently seeking a good home for his PT 11 nesting dinghy. Please see his description and contact information below. Note that shipping is not an option. Buyer will need to pick up in Port Townsend WA.
Nesting PT 11 for sale fob Port Townsend. Built in 2015 by the skillful John Caples. Wooden Boat Festival regulars will recall his immaculate wood GB 42 Xanadu and her PT 11 tender. The skiff is available, complete with PT sail kit (gorgeous foils, carbon mast and PT 11 class sail which still exudes that brand new dacron feel). Varnished, nearly flawless wooden oars included. This PT 11 comes complete with a low-hours EP Carry electric motor with two batteries and spare key and prop. Yellow canvas cover. Bags for protection of foils and mast/sail. All in fine condition.
